A laser module for automated photomanipulation on the ACQUIFER Imaging Machine

Easily parallelize complex photomanipulation experiments, such as photo-damage, photo-conversion, optogenetic or compound uncaging with the photomanipulation module for the ACQUIFER Imaging Machine.

The module is an optional hardware upgrade relying on the moving optics of the Imaging Machine. The laser is automatically positioned under specimen mounted in microtiter plates (or other sample holders), before precise photomanipulation by scanning optics.

The entire photomanipulation workflow is integrated in the ACQUIFER Plate-Viewer software, a tool for smart imaging and supervised feedback microscopy.

The module was developed in collaboration with Rapp Optoelectronic, Wedel, Germany who has over 20 years of experience in high-performance photomanipulation and advanced light microscopy techniques.

Developed as part of a cooperation project supported by BMWi’s ZIM programme (Central Innovation Programme for SMEs). Partners: ACQUIFER Imaging GmbH (Heidelberg)/DITABIS AG (Pforzheim), Rapp Optoelectronic (Wedel), Jens Westhoff lab (University Children’s Hospital, Heidelberg) and Holger Erfle lab (IPMB, Heidelberg).

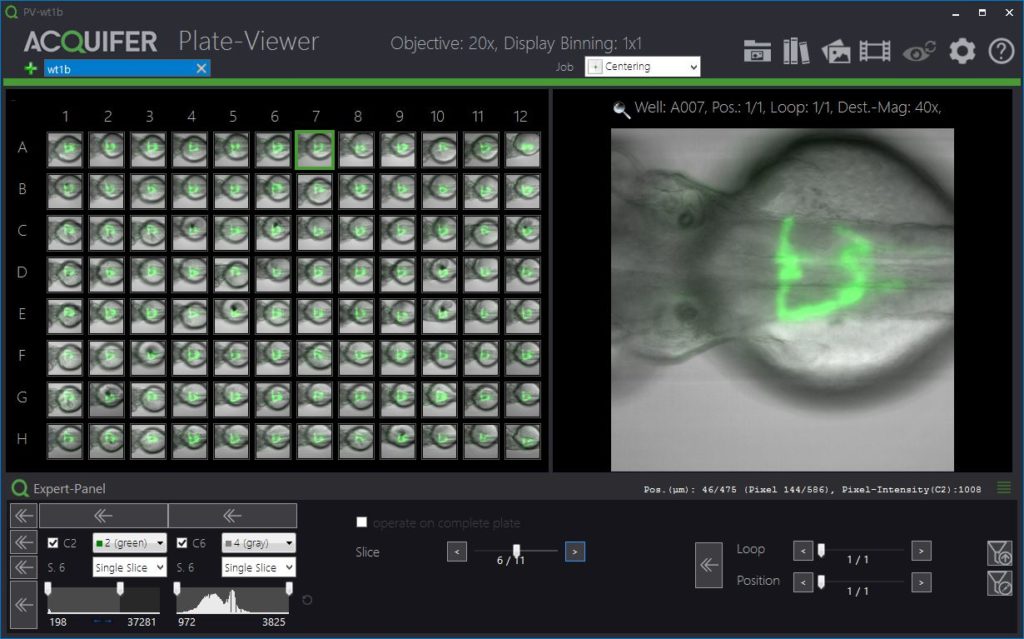

Laser ablation in the PlateViewer

Potential applications of automated photomanipulation

  • Photodamage
  • Photoconversion
  • Uncaging
  • Optogenetics

Data by Dr Jana Heigwer (Westhoff lab, University Children’s Hospital, Heidelberg)

Photomanipulation Workflow

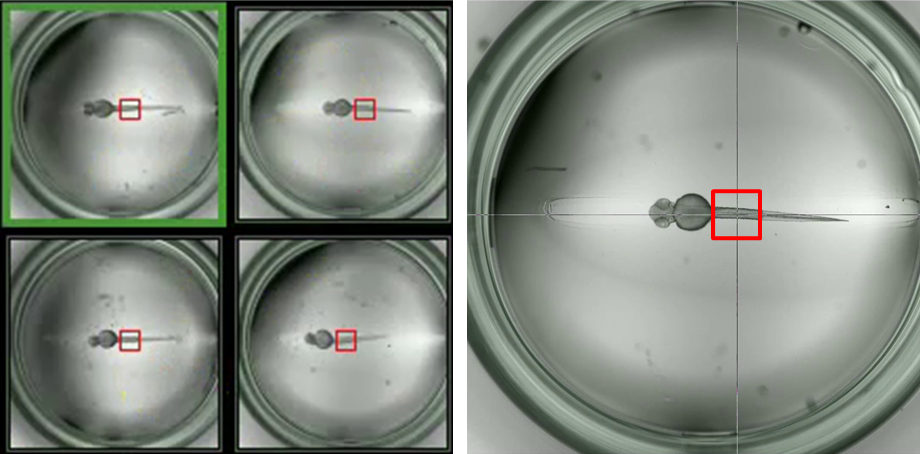

Annotation of the regions to image at higher resolution in the PlateViewer

1) Pre-screen and identification of ROIs

  • Generation of pre-screen data (e.g. using 2x objective) at low resolution
  • Selection of areas of interest for higher-magnification imaging via the Plate-Viewer
High-resolution images before ablation

2) Higher resolution imaging

  • Imaging of selected areas at higher magnification (e.g. 20x objective) using smart imaging
  • Acquisition of pre-photomanipulation reference dataset

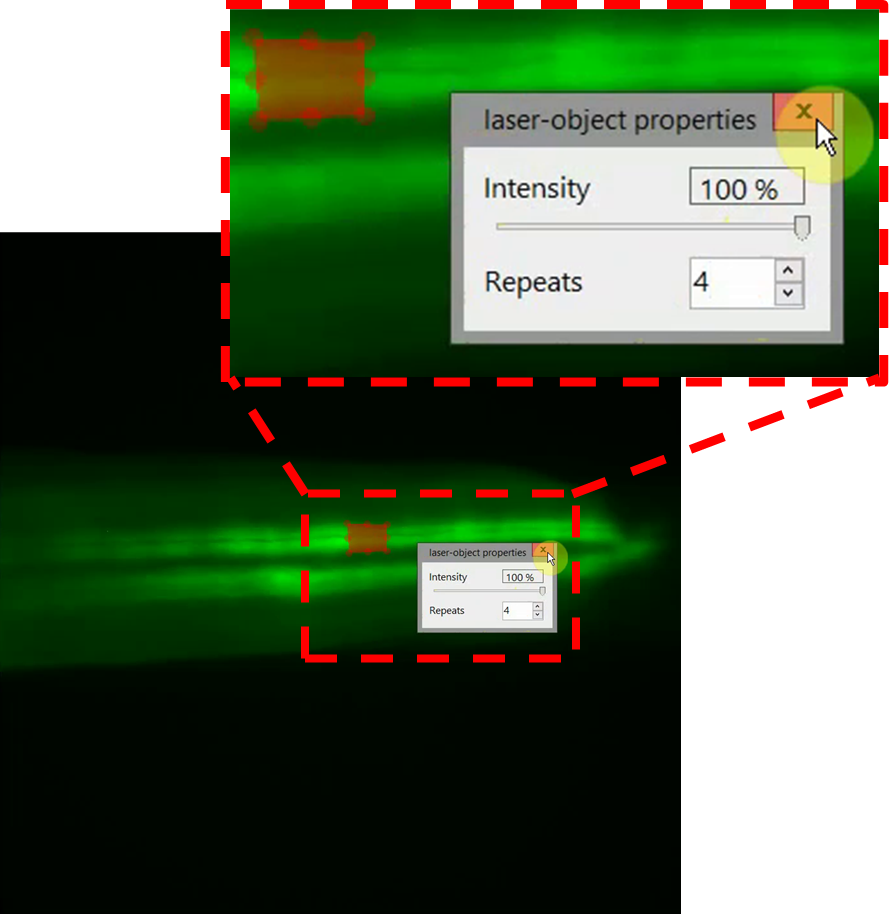

3) Annotation of regions for lasering

  • Definition of regions of interest (ROI) for targeted laser illumination using the Plate-Viewer
  • Flexible shapes: lines, polygons, filled and unfilled areas
  • Possibility to define multiple ROIs per field of view
  • Custom laser settings (intensity, iterations) for every ROI

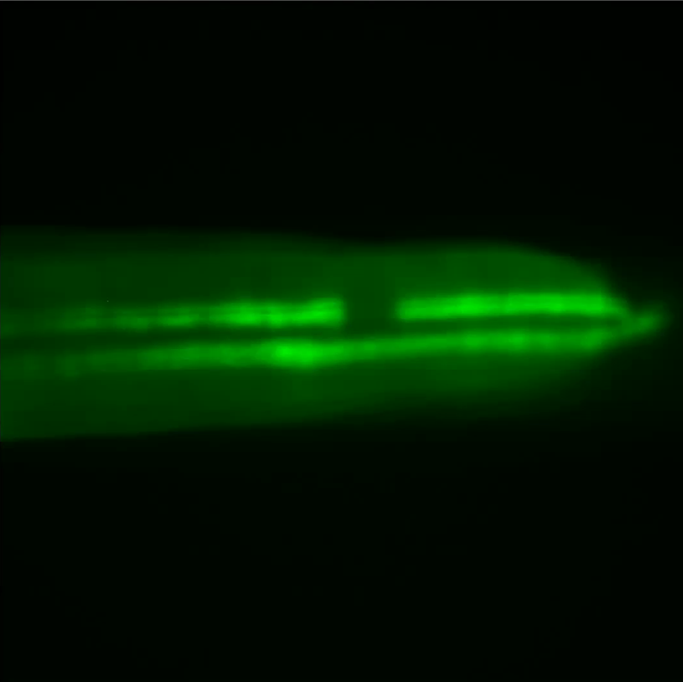

4) Lasering and post-acquisition

  • Automatic photomanipulation (e.g. tissue damage) of entire microtiter plates
  • Acquisition of post-photomanipulation dataset
